Working power range : DC(8-35)V

Overall dimensions(mm) : 266*182*45

Installation dimensions(mm) : 214*160

working temperature : (-25~+70)℃

weight : 0.95kg

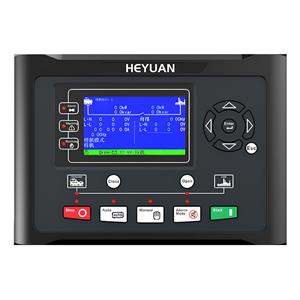

The generator set parallel controller is used for manual control of multiple generator sets with the same capacity or different capacities./Automatic parallel system and is suitable for constant power output of a single generator set and mains grid connection, realizing automatic start-up and shutdown/parallel operation, data measurement, alarm protection and "three remote" functions of the generator set. The controller adopts a large-screen liquid crystal (LCD) graphic display, which can display Chinese, English and other multiple languages. It is easy to operate and reliable in operation.

The generator set parallel controller has the controlThe functions of GOV and AVR can automatically synchronize and load share, and can be connected in parallel with generator sets equipped with HGM9510 controller. The controller accurately monitors various working conditions of the generator set. When the generator set is working abnormally, it will automatically detach from the busbar, shut down the generator set, and display the fault status on the LCD. The controller has a SAE J1939 interface and can communicate with a variety of EFI engine ECUs (ENGINE CONTROL UNIT) with J1939 interfaces.

The generator set parallel controller adoptsThe 32-bit microprocessor technology realizes functions such as precise measurement, constant value adjustment, timing and threshold setting of various parameters. Most parameters can be adjusted from the front panel of the controller. All parameters can be adjusted using a PC through the USB interface, and can be adjusted and monitored using a PC through the RS485 interface. It has compact structure, simple wiring and high reliability, and can be widely used in various types of generator set automation parallel systems.

Performance and features

1. Using 32-bit ARM microcontroller, the hardware integration is high and the reliability is further improved;

2. The liquid crystal display LCD is 480x272, with backlight, and optional interface operation in Chinese, English and other languages, and can be selected on site to facilitate factory debugging personnel to test the machine;

3. The screen protection is made of hard screen acrylic material, which has better wear resistance and scratch resistance;

4. Using silicone panels and buttons, it has a stronger ability to adapt to high and low temperature environments;

5. It has RS485 communication interface and can realize "three remote" functions by using MODBUS protocol;

6. It has a CAN BUS interface that can be connected to an EFI machine equipped with J1939. It can not only monitor the common data of the EFI machine (such as water temperature, oil pressure, rotation speed, fuel consumption, etc.), but also control startup, shutdown, speed up and down, etc. through the CAN BUS interface;

7. Suitable for three-phase four-wire, three-phase three-wire, single-phase two-wire, two-phase three-wire (120/240V) power supply 50/60Hz system;

8. Collect and display busbar/generator three-phase voltage, three-phase current, frequency, and power parameters;

9. The busbar has phase loss and reverse phase sequence detection functions, and the power generation has overvoltage, undervoltage, overfrequency, underfrequency, overcurrent, overpower, reverse power, phase loss, and reverse phase sequence detection functions;

10. Synchronization parameters include: voltage difference between power generation and busbar, frequency difference between power generation and busbar, phase angle difference between power generation and busbar;

11. It has multiple working modes in the automatic state: running without load, running with load, and running in parallel according to needs;

12. It has the function of soft load transfer during parallel connection/disconnection;

13. Three fixed analog sensors (temperature, oil pressure, liquid level);

14. Two programmable analog sensors can be set as temperature or pressure or liquid level sensors;

15. Various temperature, pressure, and oil level sensor curves can be used directly, and sensor curves can be customized;

16. Precisely collect various parameters of the engine;

17. Control and protection function: realize automatic start/stop of diesel generator set, switch closing and opening, complete fault display protection and other functions;

18. All output ports are relay outputs;

19. Parameter setting function: allows users to change and set parameters, and at the same time, they are stored in the internal EEPROM memory and will not be lost when the system is powered off. Most parameters can be adjusted from the front panel of the controller, and all parameters can be adjusted using a PC through the USB interface or through the RS485 interface using a PC;

20. Multiple starting success conditions (speed sensor, oil pressure, power generation) can be selected;

21. The power supply range is wide (8~35) VDC, which can adapt to different starting battery voltage environments;

22. It has the functions of history record, real-time clock, and scheduled power on/off (power on once a month/week/day and can be set to load or not);

23. It has accumulated running A and B and accumulated electric energy A and B. The user can clear and re-accumulate, which is convenient for users to make statistics by themselves;

24. It has heater, cooler and fuel pump control functions;

25. It has maintenance function, and the action can be set when the maintenance time is up (warning, alarm shutdown or trip shutdown);

26. All parameters are adjusted digitally, abandoning the analog adjustment method of conventional potentiometers, which improves the reliability and stability of the entire machine;

27. There is a rubber sealing ring designed between the casing and the control panel, and the waterproof performance can reach IP55;

28. The clamps used to fix the controller are metal clamps, which have excellent performance in high temperature environments;

29. Modular structure design, flame-retardant ABS shell, pluggable terminal blocks, embedded installation method, compact structure and easy installation.
