WIFI connection cloud server

Working power range : DC (8~35)V

Overall dimensions(mm) : 72.5*105*34

working temperature : (-25~+70)℃

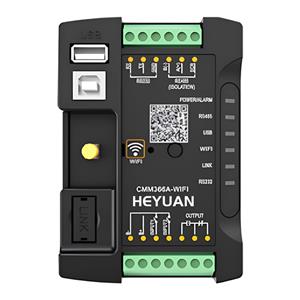

The cloud monitoring communication module is aThe WIFI wireless network communication protocol conversion module can connect the generator set (with serial communication interface) to the Internet. After the module logs into the cloud server, the cloud server will transmit the corresponding generator set controller communication protocol to the module. The cloud monitoring module can obtain the data information of the generator set through the RS485 interface, USB interface, LINK interface or RS232 interface, and transmit the obtained data information to the corresponding cloud server through the WIFI wireless network. Users can monitor the operating status of the generator set and query the operation records of the generator set in real time through mobile APP (IOS or Android system), computers and other terminal devices.

The module can not only realize the monitoring of the generator set, but also can be connected to some switch alarm inputs./Output signals to realize monitoring of computer room access control, anti-theft, fire protection and other ancillary facilities.

Performance characteristics

1. It can be connected to the cloud server through WIFI wireless network, and a cloud monitoring module monitors a generator set;

2. It has a variety of interfaces for communicating with the unit control module: RS485, RS232, LINK, USB (Host); it can monitor most generator set control modules of world-class brands;

3. The module power supply has a wide range of DC (8~35)V, and the starting battery that comes with the unit can be directly used;

4. Using ARM 32-bit microcontroller, it has high system integration and strong programming capabilities;

5. The module contains the location information of the unit, which can realize the positioning of the unit;

6. The module adopts the network data communication protocol in JSON format, and uploads real-time unit data when it changes. It also uses a compression algorithm to greatly reduce network traffic;

7. Users can upload monitoring data to the server by setting the historical data upload interval, and perform historical data analysis;

8. When an alarm occurs in the generator set, data can be uploaded to the server immediately;

9. It has two programmable switching input ports that can be connected to external alarm signals;

10. It has a programmable relay output port that can output various alarm signals;

11. With perpetual calendar and clock functions;

12. The module panel has power and multiple communication status indicators, so the module working status is clear at a glance;

13. It has the function of testing lights;

14. Parameter setting function: Users can set parameters through the module USB interface;

15. It adopts standard π-type 35mm guide rail installation or screw fixed installation, and can be installed in the generator set control box;

16. Modular structure design, flame-retardant ABS shell, light weight, compact structure, easy to install.
